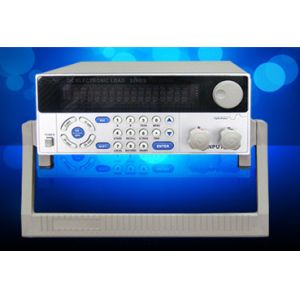

LED RS232 GPIB USB Programmable Dc Electronic Load Variable Tester

The LED electronic load supports RS232, GPIB, and USB communication interfaces, as well as remote measurement functionality

Advantages:

Programmable LED electronic loads are widely used for performance testing in fields such as power supplies, batteries, chargers, and LED driver power supplies. Whether it is product verification during the R&D phase or quality inspection during the production process, they provide strong support. Their powerful adaptability allows them to easily meet the diverse needs of different industries and fields, making them an indispensable tool in the field of electronic testing.

Features:

1. Can accurately simulate the LED load state.
2. Capable of accurate measurement simulations: DC power supply, peak-to-peak ripple, RMS ripple, voltage slew rate, and transient time.
3. In LED operation mode, can accurately measure: peak-to-peak and RMS values of current ripple.
4. Diverse functions for LED power supply testing, including CR-LED, OPP, and OCP tests.
5. Multiple test modes: LED/CV/CC/CR/CW modes.
6. High precision and resolution: 0.1mV/0.01mA.
7. Automatic software adjustment upon startup, intelligent fan control.
8. Protection against over-voltage, over-current, over-power, over-temperature, and reverse polarity.
9. Battery capacity testing and short circuit function.
10. Supports RS232, GPIB, USB communication interfaces, remote measurement capabilities.
11. Fast testing speed, high efficiency; supports external analog control.
12. Provides comprehensive testing for the "power supply under test," meeting production quality control and research and development needs.

Specification sheet:

Model		6015-E	6030-E	6030B-E	6030C-E
project		150W/120V/30A	300W/120V/30A	300W/500V /15A	300W/120V/60A
	range	0-3A,0-30A	0-3A,0-30A	0-3A,0-15A	0-6A,0-60A
CC mode	resolution	0.1mA,1mA	0.1mA,1mA	0.1mA,1mA	0.1mA,1mA
	accuracy	0.05%+0.1%FS 0.1%.+.0.1%FS	0.05%+0.1%FS 0.1%.+.0.1%FS	0.05%+0.1%FS 0.1%.+.0.1%FS	0.1%+0.1%FS 0.15%.+.025%FS
	range	0.1-99Ω,100-4KΩ	0.1-99Ω,100-4KΩ	0.1-99Ω,100-4KΩ	0.1-99Ω,100-4KΩ
CR mode	resolution	0.01Ω,1Ω	0.01Ω,1Ω	0.01Ω,1Ω	0.01Ω,1Ω
	accuracy	1%+0.3%FS 1%.+.0.8%FS	1%+3%FS 1%.+.0.8%FS	1%+0.3%FS 1%.+.0.8%FS	1%+0.3%FS 1%.+.0.8%FS
	range	0-18V,0-120V	0-18V,0-120V	0-18V,0-500V	0-18V,0-120V
CV mode	resolution	1mV,10mV	1mV,10mV	1mV,10mV	1mV,10mV
	accuracy	0.05%.+0.02%FS 0.05%.+.0.025%FS	0.05%+0.02%FS 0.05%.+.0.025%FS	0.05%+0.02%FS 0.05%.+.0.025%FS	0.05%+0.02%FS 0.05%.+.0.025%FS
	range	0-100W,100-150W	0.100W,100-300W	0-100W,100-300W	0-100W,100-300W
CW mode	resolution	1mW,10mW	1mW,10mW	1mW,10mW	1mW,10mW
	accuracy	1%+0.1%FS	1%+0.1%FS	1%+0.1%FS	1%+0.1%FS
	range	0-18V,0-120V	0-18V,0-120V	0-18V,0-500V	0-18V,0-120V
Voltage measurement	resolution	1mV,10mV	1mV,10mV	1mV,10mV	1mV,10mV
	accuracy	0.02%+0.02%FS 0.02%.+.0.025%FS	0.02%+0.02%FS 0.02%.+.0.025%FS	0.02%+0.02%FS 0.02%.+.0.025%FS	0.02% + 0.02%FS 0.02%.+.0.025%FS
	range	0-3A,0-30A	0-3A,0-30A	0-3A,0-15A	0-6A,0-60A
Current measurement	resolution	0.1mA,1mA	0.1mA,1mA	0.1mA,1mA	0.2mA,2mA
	accuracy	0.1%+0.1%FS 0.2%.+.0.15%FS	0.1%+0.1%FS 0.2%.+.0.15%FS	0.1%+ 0.1%FS 0.2%.+.0.3%FS	0.1%+0.2%FS 0.2%.+.0.5%FS
Short circuit test	Short-circuit current	≈30A	≈30A	≈15A	≈60A
	Internal resistance	≈40mΩ	≈40mΩ	≈250mΩ	≈30mΩ
Ambient temperature	Operating mode	0-40℃	0-40℃	0-40℃	0-40℃
Battery testing function	capacity	MAX 999AH	MAX 999AH	MAX 999AH	MAX 999AH
Dynamic testing mode	Test rate	0.1Hz - 1KHz	1.1HZ-1KHZ	0.1Hz - 1KHz	0.1Hz - 1KHz
